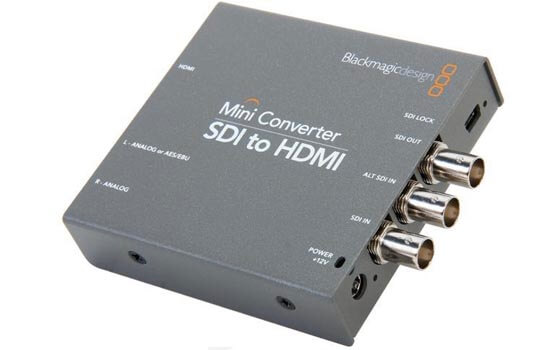

BlackMagic Design Mini Converter – SDI to HDMI

Rental price per day $ 30.00

Now it’s possible to convert from SDI to HDMI in all SD and HD formats up to 1080p60! Audio is embedded into the HDMI output and output separately as balanced analog or AES/EBU audio. Mini Converter SDI to HDMI is perfect for using HDMI televisions and video projectors as SDI monitors for all SD and HD formats, and when you don’t need the extra cost of the Ultra HD model!

Description

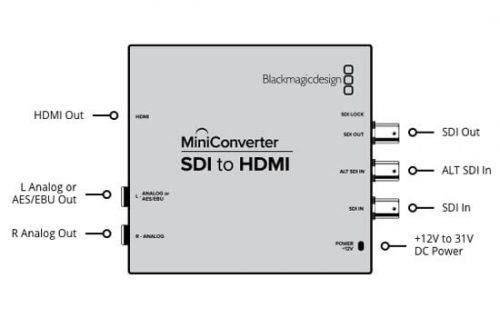

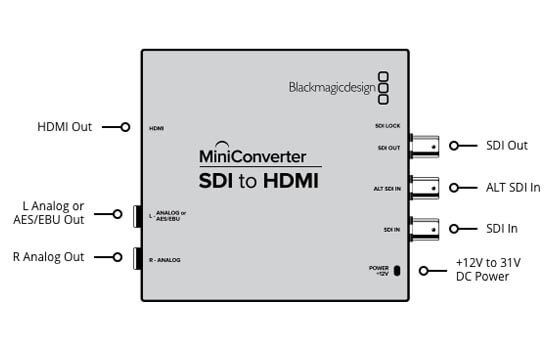

Connections

SDI Video Input: 1 x SD, HD or 3G-SDI.

SDI Video Output: Automatically matches the SD, HD and 3G-SDI video input

HDMI: HDMI type A out.

SDI Redundant Input: Automatically switches over if main SDI input is lost.

Multi Rate Support: Auto detection of SD, HD or 3G-SDI

Updates and Configuration: USB

Reclocking:Yes

Standards

SD Format Support

525/23.98 NTSC, 525/29.97 NTSC,625/25 PAL

HD Format Support

720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.

SDI Compliance

SMPTE 292M, SMPTE 259M,SMPTE 296M, SMPTE 372M,SMPTE 424M-B, SMPTE 425M.

SDI Video Rates

SDI video connections are switchable between standard definition, high definition level B 3G-SDI.

SDI Video Sampling

4:2:2 and 4:4:4

SDI Audio Sampling

Television standard sample rate of48 kHz and 24 bit.

SDI Color Precision

4:2:2 and 4:4:4

SDI Color Space

YUV and RGB

SDI Auto Switching

Automatically detects SD, HD
or 3G-SDI.

HDMI Format Support

625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25

HDMI Color Space

YUV and RGB

HDMI Color Precision

4:2:2 and 4:4:4
