BlackMagic Design Mini Converter – SDI to Analog

BlackMagic Design Mini SDI to Analog Converter for Hire
  1. BlackMagic Design Mini SDI to Analog Converter for Hire
  2. BlackMagic Design Mini Converter - SDI to Analog - Image 2
  3. BlackMagic Design Mini Converter - SDI to Analog - Image 3

BlackMagic Design Mini Converter – SDI to Analog

Rental price per day $ 30.00

The perfect way to convert from SD and HD‑SDI to analog component, s‑video or NTSC/PAL composite. Mini Converter SDI to analog supports all SD and HD input formats up to 1080p30 and includes a down converter for when you need to convert from HD to standard definition analog formats such as s‑video and composite. Audio can be de‑embedded to balanced analog or AES/EBU.

Categories: , , , Tag:

Description

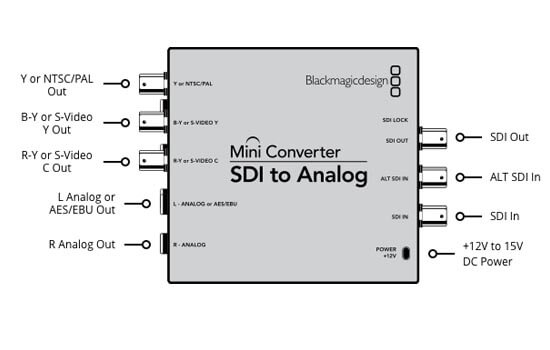

Connections

SDI Video Inputs

1 x SD, HD or 1.5G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.

SDI Video Outputs

1 x SDI Loop Output.

SDI Rates

270Mb, 1.5G

Analog Video Outputs

NTSC, PAL, S‑Video and component SD/HD from 1.5G‑SDI input.

Analog Audio Outputs

2 channels of professional balanced analog audio with standard 1/4 inch jack connections.

Digital Audio Outputs

2 channels of balanced AES/EBU audio.

SDI Redundant Input

Automatically switches over if main SDI input is lost.

Multi Rate Support

Auto detection of SD, HD or 1.5G‑SDI.

Updates and Configuration

USB

Reclocking

Yes

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60

SDI Compliance

SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M‑B, SMPTE 425M, ITU‑R BT.656 and ITU‑R BT.601.

SDI Video Rates

SDI video connections are switchable between SD and HD.

SDI Video Sampling

4:2:2

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24 bit.

SDI Color Precision

4:2:2

SDI Color Space

YUV

SDI Auto Switching

Auto detection of SD, HD or 3G‑SDI.

Analog Video Standards

525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60

Analog Color Space

YUV

Video Production Services

We’re here to help your Brisbane or Gold Coast business blast off with creative ideas and stunning videography for your corporate videos.
Get a Quote!

Analog Color Precision

4:2:2

Format Conversion

HD to SD down converter.
